PHP通过Thrift操作Hbase

分类: hbase 颜色:橙色 默认  字号: 阅读(2140) | 评论(0)

HBase是一个开源的NoSQL产品,它是实现了Google BigTable论文的一个开源产品,和Hadoop和HDFS一起,可用来存储和处理海量column family的数据。官方网址是:http://hbase.apache.org

一 、HBase访问接口

1.  Native Java API,最常规和高效的访问方式,适合Hadoop MapReduce Job并行批处理HBase表数据
2.  HBase Shell,HBase的命令行工具,最简单的接口,适合HBase管理使用
3.  Thrift Gateway,利用Thrift序列化技术,支持C++,PHP,Python等多种语言,适合其他异构系统在线访问HBase表数据
4.  REST Gateway,支持REST 风格的Http API访问HBase, 解除了语言限制
5.  Pig,可以使用Pig Latin流式编程语言来操作HBase中的数据,和Hive类似,本质最终也是编译成MapReduce Job来处理HBase表数据,适合做数据统计
6.  Hive,当前Hive的Release版本尚没有加入对HBase的支持,但在下一个版本Hive 0.7.0中将会支持HBase,可以使用类似SQL语言来访问HBase
如果使用PHP操作Hbase,推荐使用Facebook开源出来的thrift,官网是:http://thrift.apache.org/ ,它是一个类似ice的中间件,用于不同系统语言间信息交换。

二、安装Thrift

在Hadoop和Hbase都已经安装好的集群上安装Thrift,Thrift安装在Hmaster机器上

1. 下载thrift

wget http://mirror.bjtu.edu.cn/apache//thrift/0.8.0/thrift-0.8.0.tar.gz

2. 解压

tar -xzf thrift-0.8.0.tar.gz

3 .编译安装:

如果是源码编译的,首先要使用./boostrap.sh创建文件./configure ,我们这下载的tar包,自带有configure文件了。((可以查阅README文件))

If you are building from the first time out of the source repository, you will
need to generate the configure scripts.  (This is not necessary if you
downloaded a tarball.)  From the top directory, do:
./bootstrap.sh

./configure
make ; make install

4. 启动:

# ./bin/hbase-daemon.sh start thrift [--port=PORT]
starting thrift, logging to /home/banping/hbase/hbase-0.90.3/bin/../logs/hbase-root-thrift-localhost.localdomain.out

Thrift默认监听的端口是9090

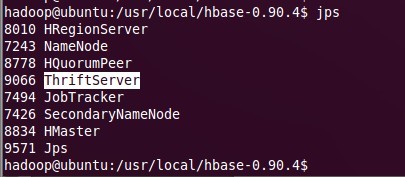

使用jps查看进程,看到ThriftServer进程:



三、测试:

1 .php脚本库操作Hbase

PHP通过Thrift访问Hbase的库是在thrift-0.8.0/lib/php/src目录下,其实这个文件夹下也包含通过Thrift访问Hbase的PHP扩展源代码。

1)复制thrift-0.8.0/lib/php到相应的php web目录。

2)然后生成php与hbase接口文件

  #/usr/local/thrift/bin/thrift --gen php /usr/local/hbase/src/main/resources/org/apache/hadoop/hbase/thrift/Hbase.thrift
  #(根据自己的目录设置)

   生成目录文件: /usr/local/hbase/gen-php/Hbase
   有文件: Hbase.php,Hbase_types.php

   把Hbase.php,Hbase_types.php copy到:web目录/php/src/packages/Hbase/

3)使用php脚本测试:

  1.
  2. ini_set('display_errors', E_ALL);
  3. $GLOBALS['THRIFT_ROOT'] = './php/src';
  4.
  5. require_once$GLOBALS['THRIFT_ROOT'] . '/Thrift.php' );
  6. require_once$GLOBALS['THRIFT_ROOT'] . '/transport/TSocket.php' );
  7. require_once$GLOBALS['THRIFT_ROOT'] . '/transport/TBufferedTransport.php' );
  8. require_once$GLOBALS['THRIFT_ROOT'] . '/protocol/TBinaryProtocol.php' );
  9. require_once$GLOBALS['THRIFT_ROOT'] . '/packages/Hbase/Hbase.php' );
  10.
  11. $socket = new TSocket('10.64.60.83''9090');
  12.
  13. $socket->setSendTimeout(10000); // Ten seconds (too long for production, but this is just a demo ;)
  14. $socket->setRecvTimeout(20000); // Twenty seconds
  15. $transport = new TBufferedTransport($socket);
  16. $protocol = new TBinaryProtocol($transport);
  17. $client = new HbaseClient($protocol);
  18.
  19. $transport->open();
  20.
  21. //获取表列表
  22. $tables = $client->getTableNames();
  23. sort($tables);
  24. foreach ($tables as $name) {
  25.
  26.     echo"  found: {$name} " );
  27. }
  28.
  29. //创建新表student
  30. $columns = array(
  31.     new ColumnDescriptor(array(
  32.         'name' => 'id:',
  33.         'maxVersions' => 10
  34.     )),
  35.     new ColumnDescriptor(array(
  36.         'name' => 'name:'
  37.     )),
  38.     new ColumnDescriptor(array(
  39.         'name' => 'score:'
  40.     )),
  41. );
  42.
  43. $tableName = "student";
  44. try {
  45.     $client->createTable($tableName$columns);
  46. } catch (AlreadyExists $ae) {
  47.     echo"WARN: {$ae->message} " );
  48. }
  49. //获取表的描述
  50.
  51. $descriptors = $client->getColumnDescriptors($tableName);
  52. asort($descriptors);
  53. foreach ($descriptors as $col) {
  54.     echo"  column: {$col->name}, maxVer: {$col->maxVersions} " );
  55. }
  56.
  57. //修改表列的数据
  58. $row = '2';
  59. $valid = "foobar-xE7x94x9FxE3x83x93";
  60. $mutations = array(
  61.     new Mutation(array(
  62.         'column' => 'score',
  63.         'value' => $valid
  64.     )),
  65. );
  66. $client->mutateRow($tableName$row$mutations);
  67.
  68.
  69. //获取表列的数据
  70. $row_name = '2';
  71. $fam_col_name = 'score';
  72. $arr = $client->get($tableName$row_name$fam_col_name);
  73. // $arr = array
  74. foreach ($arr as $k => $v) {
  75. // $k = TCell
  76.     echo ("value = {$v->value} ,
      "
    );
  77.     echo ("timestamp = {$v->timestamp}
    "
    );
  78. }
  79.
  80. $arr = $client->getRow($tableName$row_name);
  81. // $client->getRow return a array
  82. foreach ($arr as $k => $TRowResult) {
  83. // $k = 0 ; non-use
  84. // $TRowResult = TRowResult
  85.     var_dump($TRowResult);
  86. }
  87.
  88. $transport->close();
  89. ?>


通过浏览器查看看到项目中的所有表,证明PHP可以通过thrift访问HBase了。



2. 使用PHP扩展的方式来使用thrift

我们使用PHP自带的phpize来生成Thtift的php扩展。该扩展的源码结构:

hadoop@ubuntu:/usr/local/hbase-0.90.4/thrift-0.8.0/lib/php/src
$ cd ext/thrift_protocol
$ /usr/local/php/bin/phpize
$ ./configure --with-php-config=/usr/local/php/bin/php-config --enable-thrift_protocol
$ make
$ make install


然后把生成的thrift_protocol.so文件配置到php.ini并重启apache服务。
